Power DC/DC Converter DCDC-M
Product detailed description
Key Features
- Quick & Cost-Efficient — Preconfigured design for lower cost, short lead times, and hassle-free installation — no custom setup needed.
- Galvanic Isolation — Electrically isolated input and output for enhanced safety, noise reduction, and system protection.
- Higher Input Voltage — Supports input voltages up to 144 V — ideal for demanding industrial and energy systems.
The DCDC-M family is a DC/DC power conversion platform built for the diverse demands of hydrogen fuel cell and other applications. It’s based on standard industrial DC/DC converters — but enhanced with Kolibrik’s custom control electronics.
Out of the box, these converters aren’t designed to scale.

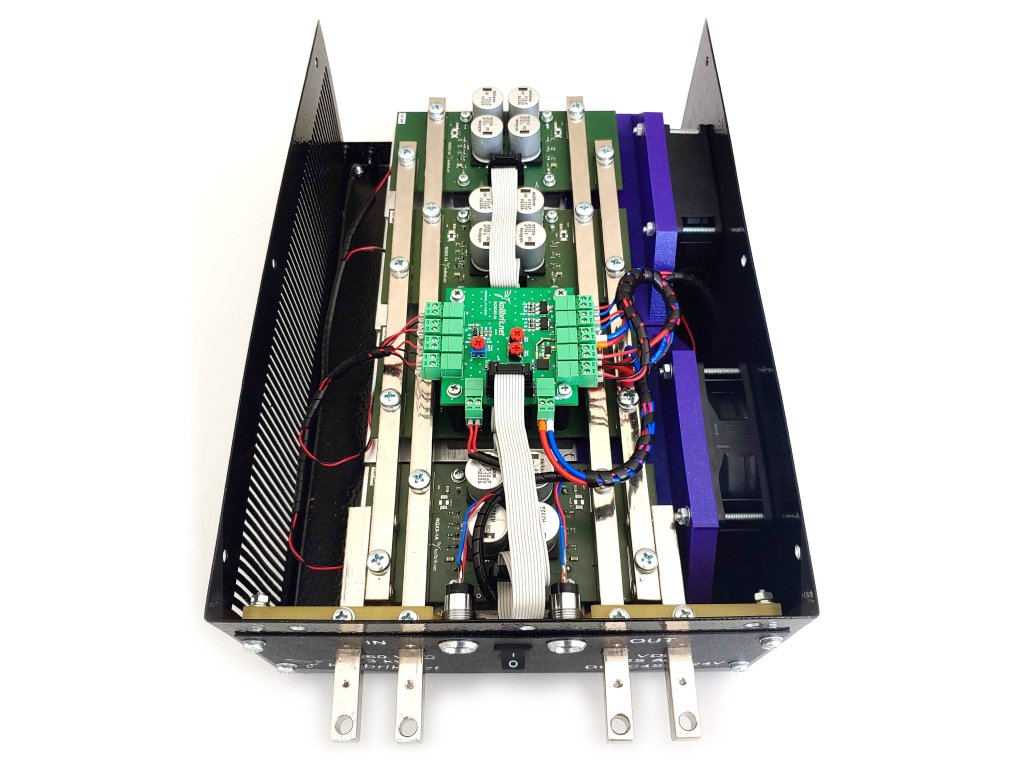

DC/DC Power Converter DCDC-M6-48/126
The DCDC-M Product Family includes one universal model — DCDC-M6-48/126 — designed to cover a broad range of typical use cases.
A custom-configurable variant is available for application-specific requirements.
- Stand-alone DC/DC converter with fixed output — Preconfigured module with defined voltage and current parameters — ideal for consistent, repeatable use cases.
- Open-frame setup for system integration — Bare-board version optimized for direct integration into existing power architectures or embedded designs.
- Fully customized solutions for series production — Tailored hardware and control electronics for OEM projects, including thermal management, mechanical design, and digital interface integration.
- Adaptable Performance — The DCDC-M platform supports both constant voltage and current limitation.
Technical Parameters
| Cooling | Air |
| Design | Box |
| Input voltage | e.g. 72 … 144 V |
| Output voltage | 48 V |
| Max. input current | 92 A |
| Max. output current | 100 A |
| Isolation | Isolated |
| Power | 1 .. 2.3 kW |
| Efficiency | up to 97 % |
| Output control | Constant voltage |
| Controller options | Fixed output settings |
Use Cases
From fuel-cell stacks to BoP and hybrid storage — precision power conversion across your hydrogen system.
- Output power conversion — Fuel-cell stack output power conversion for application power (e.g. fixed 24 V or 48 V output)
- Balance of Plant (BoP) power supply — Powers pumps, valves, sensors and controls
- Pre-conditioning for inverters with incompatible inputs — Matches stack output to inverter input range
Example setup
5 kW H2FC stack (e.g. fixed 24 V or 48 V output) → DCDC-M (output 48 V) → inverter (48 VDC → 230 VAC)
Customization
We offer DCDC-M models with custom-defined parameters, tailored mechanical and thermal setups, or as part of complete development services for custom projects and series production.
Need something specific? Just tell us your key requirements — input/output voltage and current ranges, preferred cooling method, control interface needs, and any other application-specific constraints — we offer customized solutions!
Tailored to your setup
We don’t do one-size-fits-all. We offer:
- Open-frame variants for seamless system integration
- Fully customized solutions for OEM or serial production
- Flexible mechanical and cooling options
- Complete development services for custom needs
Resources
Product webpage: DCDC-M Product Family | kolibrik.net
