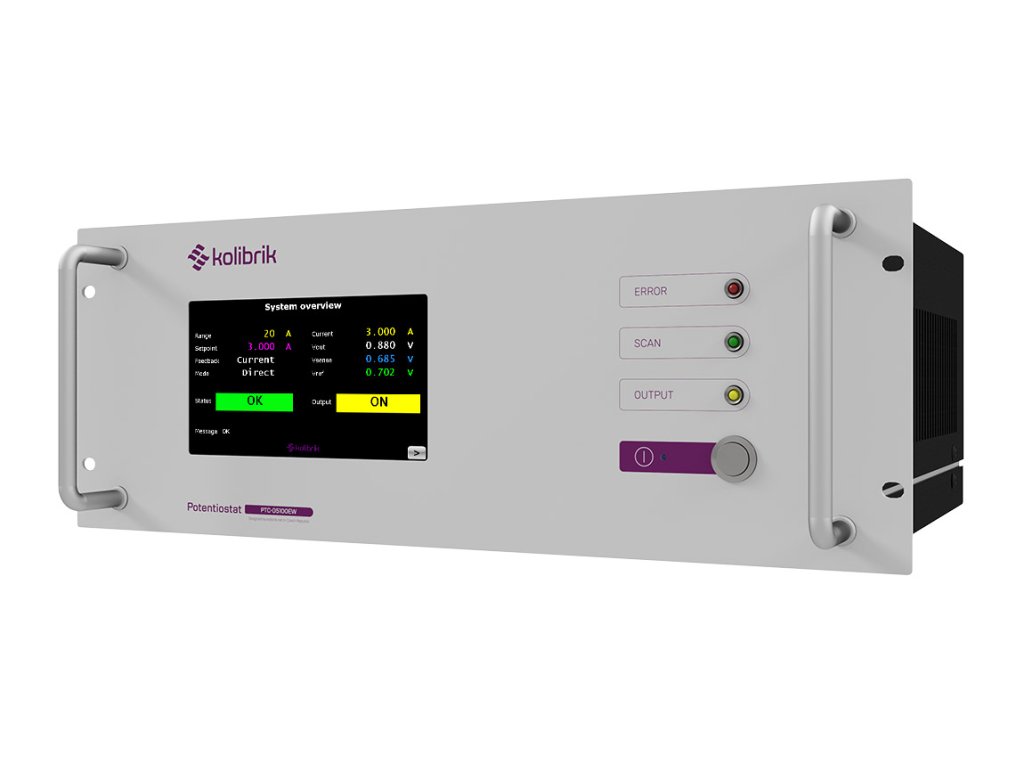

    Potentiostat/Galvanostat PTC-1050EW

    potentiostat
    €0 €0 incl. VAT
    On request

    Potentiostats are designed for EIS analysis of single fuel cells, electrolyzers, or batteries. Typical applications include hydrogen fuel cells, water electrolyzers, solid-oxide cells, redox-flow batteries, and lithium batteries with high-current and high-power requirements. Additionally, EIS is utilized in applied research, manufacturing testing, and quality control.

    Detailed information

    Product detailed description

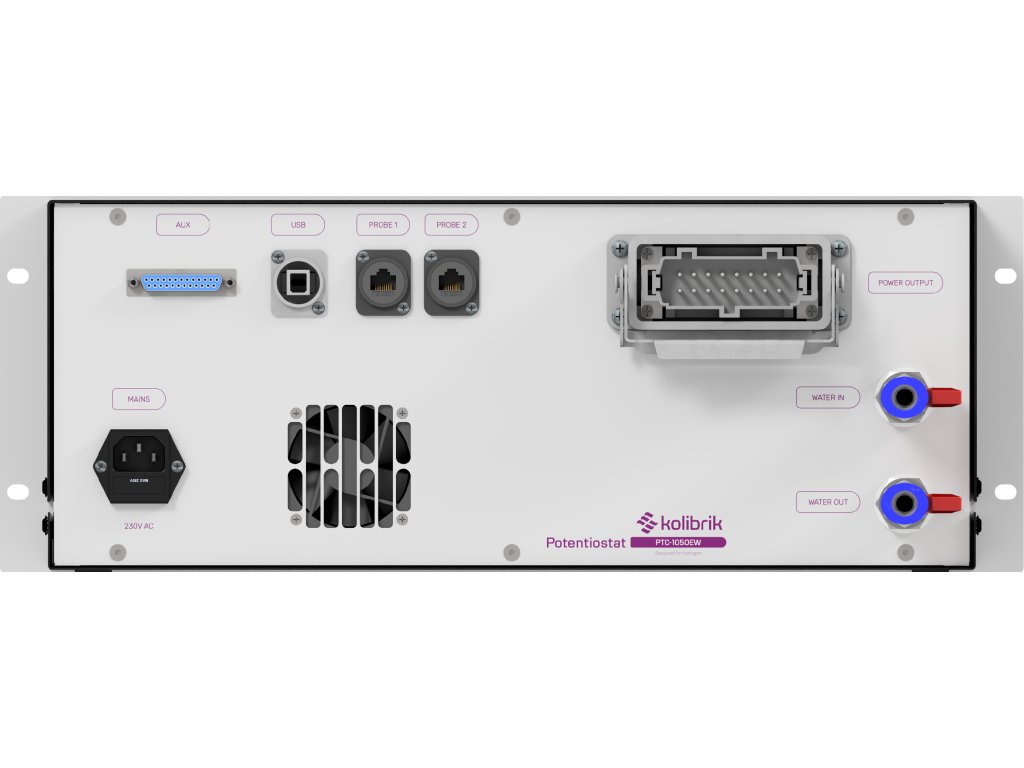

    The PTC-1050EW is a state-of-the-art, water-cooled Potentiostat/Galvanostat engineered to meet the rigorous demands of modern electrochemical research. With its output voltage of ±10 V and current range up to ±50 A, it's the ideal tool for a diverse array of applications, including Electrochemical Impedance Spectroscopy (EIS).

    Experience exceptional accuracy and precision in your electrochemical measurements!



    Key Features

    • Potentiostat / Galvanostat up to ±50 A (4-quadrant)
    • Current ranges up to ±50 A (4 ranges)
    • Impedance spectroscopy 1 mHz ... 100 kHz
    • Cyclic Voltametry, Chronoamperometry and other standard electrochemical methods
    • Software with external control via TCP/IP, LabView drivers on request



    Technical Parameters

    Power supply 110 … 240 V AC / 50 … 60 Hz
    Dimensions 19“ rack cabinet, 4U height
    Cooling Water
    Protection rating IP20
    Electrometer Input voltage range 10 V … +10 V
    Compliance / Output voltage -10 V … +10 V
    Compliance / Output current -50 A … +50 A
    Max. internal power dissipation 1000 W
    Current ranges 500 mA, 5 A, 20 A, 50 A
    Sampling 24-bit ADCs, 1 ksps internal, 50 sps filtered sampling
    14-bit ADCs, up to 20 Msps for EIS measurements
    Measurement resolution 0.001% of selected range for ≤ 1 ksps sampling
    Accuracy Voltage: ≤ 0.1% of range + 0.1% of reading
    Current: ≤ 0.1% of range + 0.5% of reading
    Acquitions methods Constant V, I, Open circuit, Manual control, Linear Sweeps, Cyclic Voltammetry, Cyclic Amperometry, Electrochemical Impedance Spectroscopy (EIS), Python scripting
    EIS frequency 1 mHz ... 100 kHz, limited use up to 1 MHz
    EIS amplitude (for < 1 kHz) 1 … 1000 mV
    up to 25 A
    PC connection USB 2.0
    Software Software for MS Windows, TCP Server, NI LabVIEW drivers, Python tools

    If these variants do not suit you, please contact us, we offer customized solutions!



    Resources

    Product webpage: Potentiostat PTC-1050EW | kolibrik.net
    Documentation: Potentiostat Product Family Datasheet
