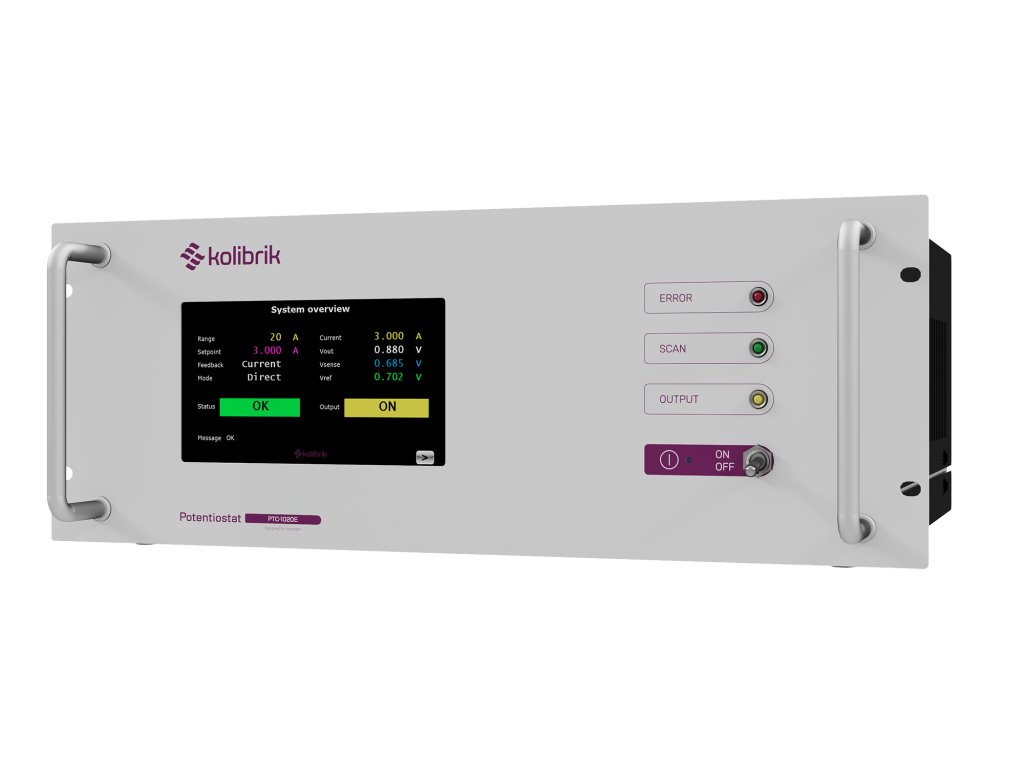

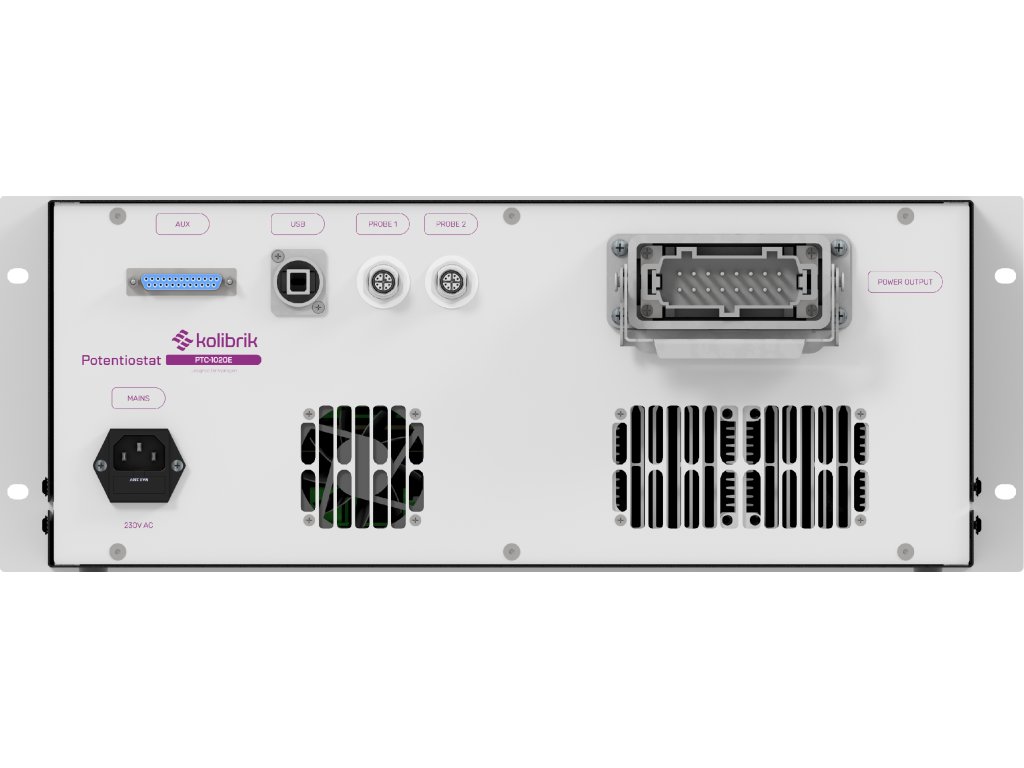

Potentiostat/Galvanostat PTC-1020E
Product detailed description
Potentiostats are designed for EIS analysis of single fuel cells, electrolyzers, or batteries. Typical applications include hydrogen fuel cells, water electrolyzers, solid-oxide cells, redox-flow batteries, and lithium batteries with high-current and high-power requirements. Additionally, EIS is utilized in applied research, manufacturing testing, and quality control.
The PTC-1020E is a specialized Potentiostat/Galvanostat within the Kolibrik Potentiostat Product Family, meticulously engineered for battery testing applications. It offers up to ±20 A current range, making it an ideal choice for demanding battery performance analysis including Electrochemical Impedance Spectroscopy (EIS).
Experience exceptional accuracy and precision in your electrochemical measurements!
Key Features
- Potentiostat / Galvanostat up to ±20 A (4-quadrant)
- Current ranges up to ±20 A (4 ranges)
- Impedance spectroscopy 1 mHz ... 100 kHz
- Cyclic Voltametry, Chronoamperometry and other standard electrochemical methods
- Software with external control via TCP/IP, LabView drivers on request
Technical Parameters
| Power supply | 110 … 240 V AC / 50 … 60 Hz |
| Dimensions | 19“ rack cabinet, 4U height |
| Cooling | Air |
| Protection rating | IP20 |
| Electrometer Input voltage range | 10 V … +10 V |
| Compliance / Output voltage | -5 V … +10 V |
| Compliance / Output current | -20 A … +20 A |
| Max. internal power dissipation | 300 W |
| Current ranges | 20 mA, 200 mA, 2 A, 20 A |
| Sampling | 24-bit ADCs, 1 ksps internal, 50 sps filtered sampling 14-bit ADCs, up to 20 Msps for EIS measurements |
| Measurement resolution | 0.001% of selected range for ≤ 1 ksps sampling |
| Accuracy | Voltage: ≤ 0.1% of range + 0.1% of reading Current: ≤ 0.1% of range + 0.5% of reading |
| Acquitions methods | Constant V, I, Open circuit, Manual control, Linear Sweeps, Cyclic Voltammetry, Cyclic Amperometry, Electrochemical Impedance Spectroscopy (EIS), Chronoamperometry, Chronopotentiometry, Double Step Chronoamperometry, Double Step Chronopotentiometry, Current Interrupt, Square Pulse Potentiometry, Square Pulse Amperometry, Battery Charge and Discharge, Custom experiment sequences, Python scripting |
| EIS frequency | 1 mHz ... 100 kHz, limited use up to 1 MHz |
| EIS amplitude (for < 1 kHz) | 1 … 1000 mV up to 10 A |
| PC connection | USB 2.0 |
| Software | Software for MS Windows, TCP Server, NI LabVIEW drivers, Python library and examples |
If these variants do not suit you, please contact us, we offer customized solutions!
Resources
Product webpage: Potentiostat PTC-1020E | kolibrik.net
Documentation: Potentiostat Product Family Datasheet
