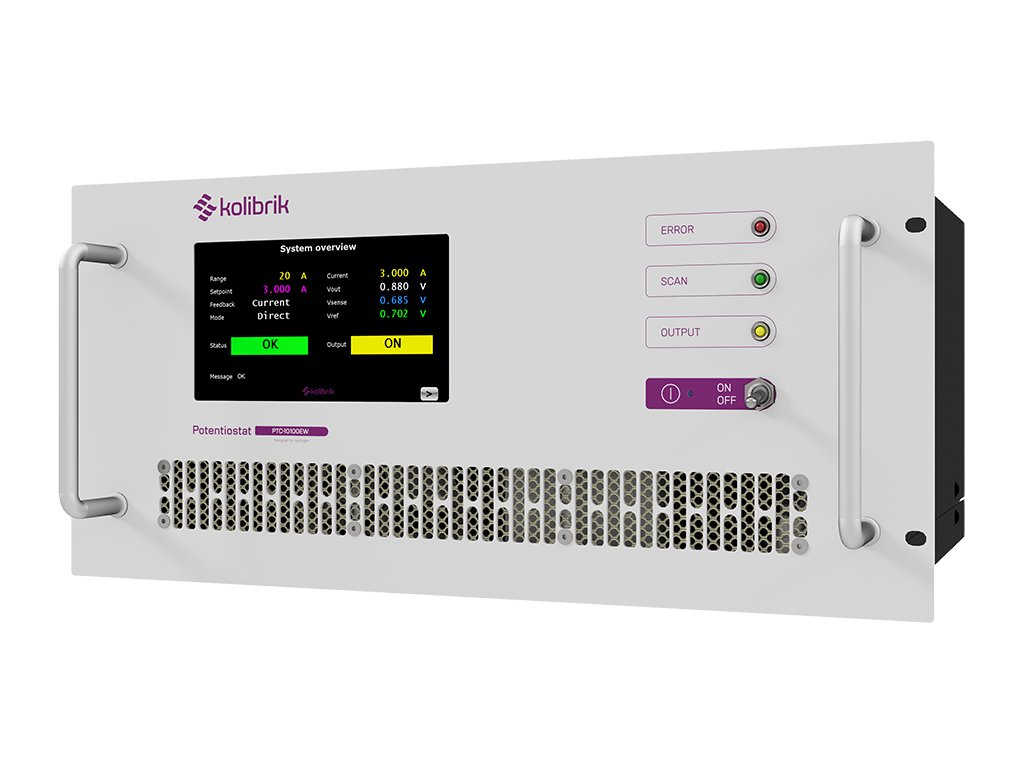

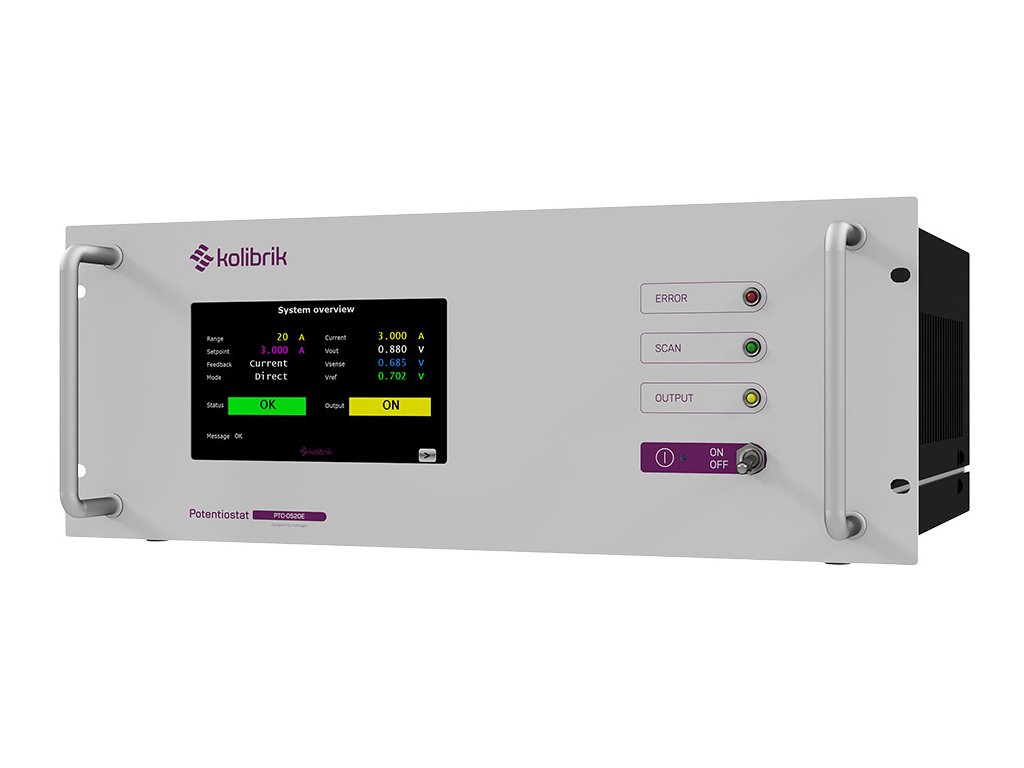

Potentiostat Core PTC-10100EW
Product detailed description
Potentiostats are designed for EIS analysis of single fuel cells, electrolyzers, or batteries. Typical applications include hydrogen fuel cells, water electrolyzers, solid-oxide cells, redox-flow batteries, and lithium batteries with high-current and high-power requirements. Additionally, EIS is utilized in applied research, manufacturing testing, and quality control.
Potentiostat Core Line – The High-Current Workstation for Demanding R&D
Scaling up to large-format cells demands continuous power and uncompromised signal stability. The Core Line meets these requirements with a robust, all-in-one hardware architecture built around a heavy-duty 4-quadrant potentiostat. Delivering up to ±100 A for sustained loads, it ensures reliable, high-precision data acquisition. Equipped with an integrated display and full-range Electrochemical Impedance Spectroscopy (EIS) up to 100 kHz, it provides the uncompromising performance required for demanding fuel cell, battery, and electrolyzer R&D.
Experience exceptional accuracy and precision in your electrochemical measurements!
Key Features
- Potentiostat / Galvanostat up to ±100 A (4-quadrant)
- Output voltage: -2 V … +10 V
- Current ranges up to ±100 A (4 ranges)
- Impedance spectroscopy 1 mHz ... 100 kHz
- Cyclic Voltametry, Chronoamperometry and other standard electrochemical methods
- Software with external control via TCP/IP, LabView drivers on request
Product Introduction Video
Technical Parameters
| Power supply | 110 … 240 V AC / 50 … 60 Hz |
| Dimensions | 19“ rack cabinet, 5U height; 440 mm (W) × 223 mm (H) × 358 mm (D) |
| Cooling | Water |
| Protection rating | IP20 |
| Electrometer Input voltage range | 10 V … +10 V |
| Compliance / Output voltage | -2 V … +10 V |
| Compliance / Output current | -100 A … +100 A |
| Max. internal power dissipation | 1000 W |
| Current ranges | 500 mA, 5 A, 20 A, 100 A |
| Sampling | 14-bit ADCs, up to 20 Msps for EIS measurements, max. 2000 samples per single frequency |
| Measurement resolution | 0.001% of selected range for ≤ 1 ksps sampling |
| Accuracy | Voltage: ≤ 0.1% of range + 0.1% of reading Current: ≤ 0.1% of range + 0.5% of reading |
| Acquitions methods | Constant V, I, Open circuit, Manual control, Linear Sweeps, Cyclic Voltammetry, Cyclic Amperometry, Electrochemical Impedance Spectroscopy (EIS), Chronoamperometry, Chronopotentiometry, Double Step Chronoamperometry, Double Step Chronopotentiometry, Current Interrupt, Square Pulse Potentiometry, Square Pulse Amperometry, Battery Charge and Discharge, Custom experiment sequences, Python scripting |
| EIS frequency | 1 mHz ... 100 kHz, limited use up to 1 MHz |
| EIS amplitude (for < 1 kHz) | 1 … 1000 mV up to 50 A |
| PC connection | USB 2.0 |
| Software | Software for MS Windows, TCP Server, NI LabVIEW drivers, Python library and examples |
If these variants do not suit you, please contact us, we offer customized solutions!
Software
To run your experiments, you’ll use Artemis – Kolibrik Measurement Software – our measurement and control app that manages everything from test sequencing to real-time data acquisition and visualization. Just connect the Potentiostat, choose your method, and let the science begin.
Resources
Product webpage: Potentiostat PTC-10100EW | kolibrik.net
Documentation: Potentiostat Core Line Datasheet
Product Introduction Video: Kolibrik Potentiostat PTC-05100EW – Unboxing, Demo & Measurement
