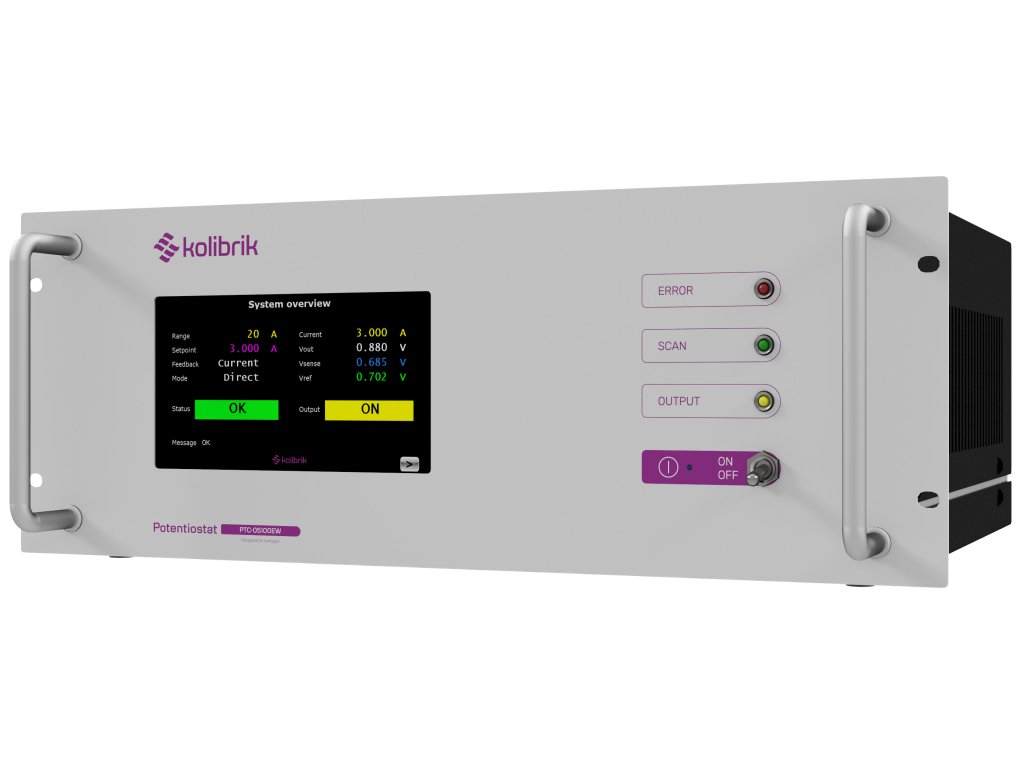

    Potentiostat/Galvanostat PTC-05100EW

    potentiostat
    €0 €0 incl. VAT
    On request

    Potentiostats are designed for EIS analysis of single fuel cells, electrolyzers, or batteries. Typical applications include hydrogen fuel cells, water electrolyzers, solid-oxide cells, redox-flow batteries, and lithium batteries with high-current and high-power requirements. Additionally, EIS is utilized in applied research, manufacturing testing, and quality control.

    Detailed information

    Product detailed description

    The PTC-05100EW is the most powerful Potentiostat/Galvanostat in the Kolibrik Potentiostat Product Family, designed to push the boundaries of electrochemical research. Delivering up to ±100 A current, the PTC-05100EW handles even the most demanding electrochemical experiments.

    Experience exceptional accuracy and precision in your electrochemical measurements!



    Key Features

    • Potentiostat / Galvanostat up to ±100 A (4-quadrant)
    • Current ranges up to ±100 A (4 ranges)
    • Impedance spectroscopy 1 mHz ... 100 kHz
    • Cyclic Voltametry, Chronoamperometry and other standard electrochemical methods
    • Software with external control via TCP/IP, LabView drivers on request



    Technical Parameters

    Power supply 110 … 240 V AC / 50 … 60 Hz
    Dimensions 19“ rack cabinet, 4U height

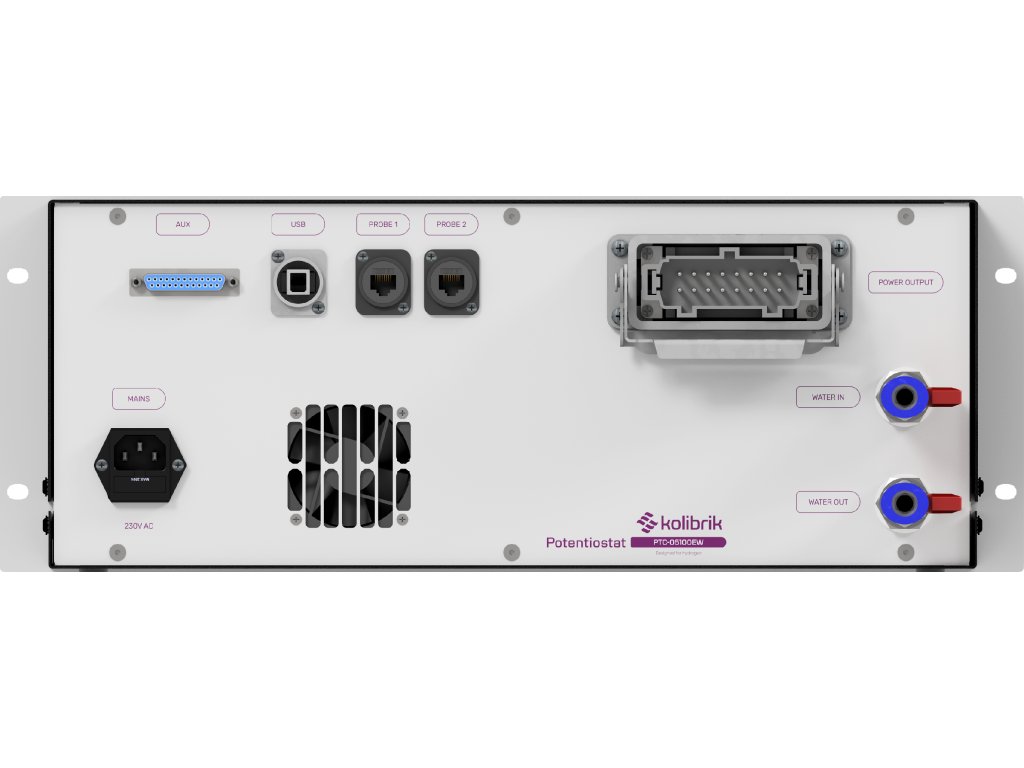

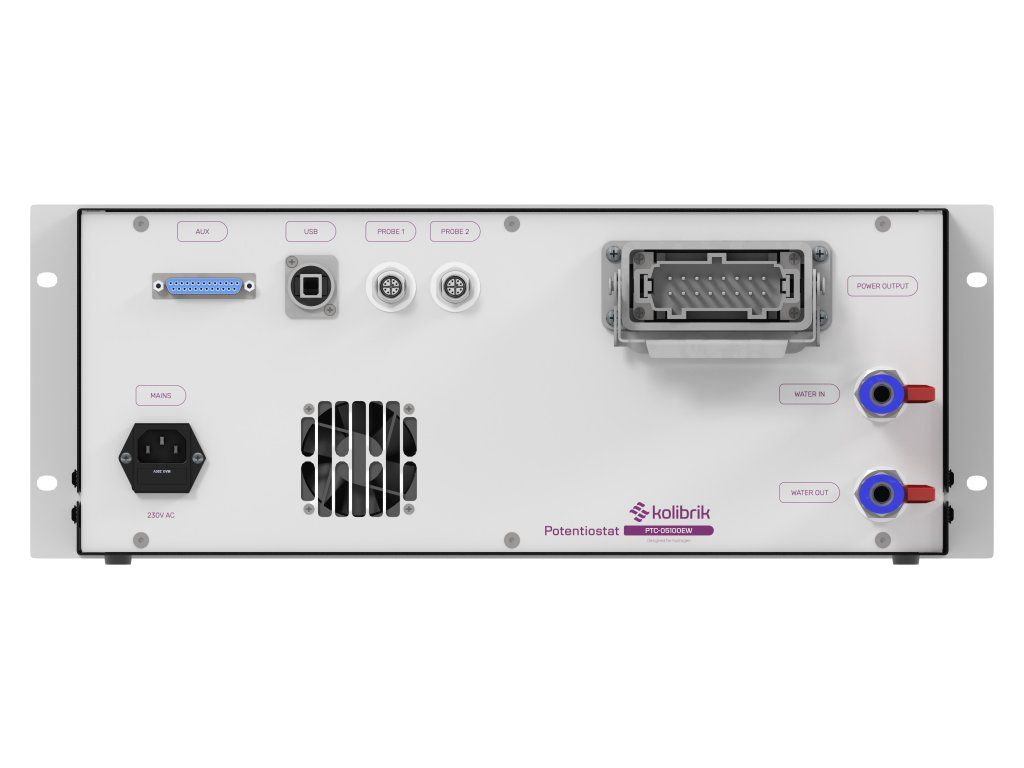

    Cooling Water
    Protection rating IP20
    Electrometer Input voltage range 10 V … +10 V
    Compliance / Output voltage -5 V … +5 V
    Compliance / Output current -100 A … +100 A
    Max. internal power dissipation 1000 W
    Current ranges 500 mA, 5 A, 20 A, 50 A
    Sampling 24-bit ADCs, 1 ksps internal, 50 sps filtered sampling
    14-bit ADCs, up to 20 Msps for EIS measurements

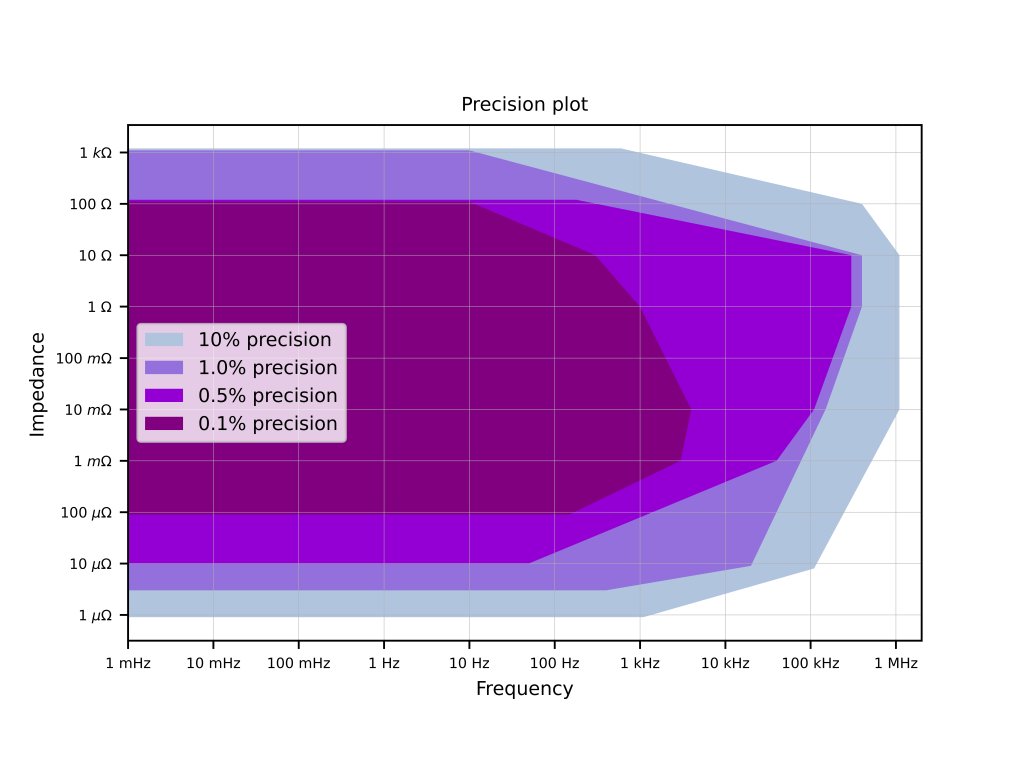

    Measurement resolution 0.001% of selected range for ≤ 1 ksps sampling

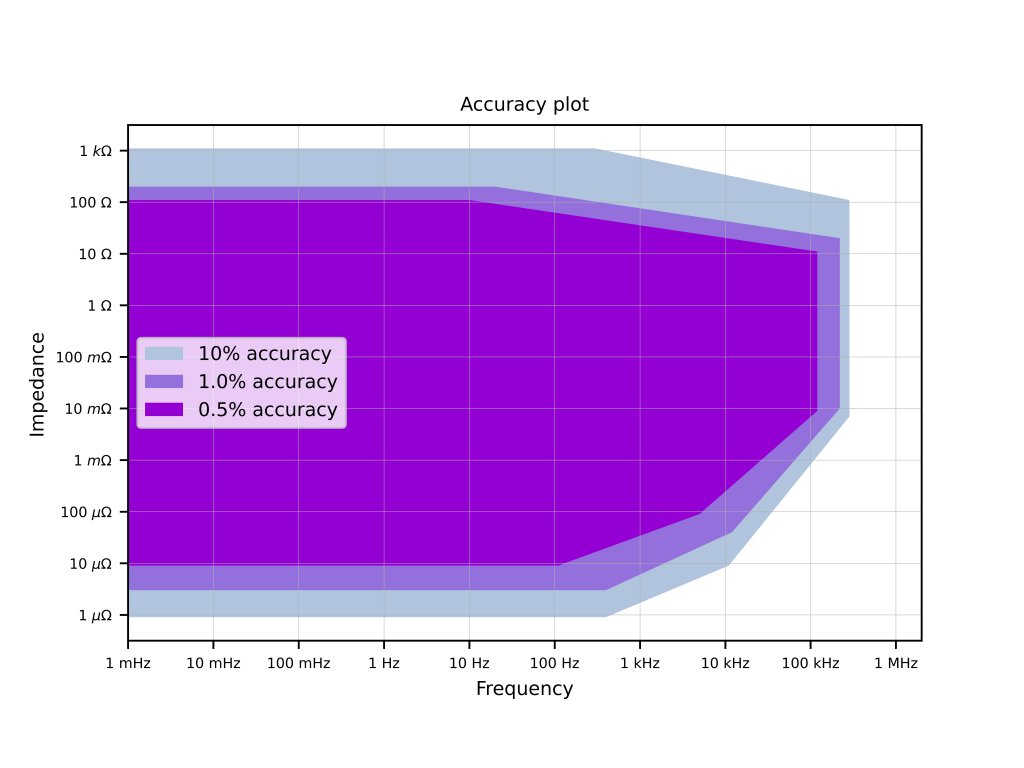

    Accuracy Voltage: ≤ 0.1% of range + 0.1% of reading
    Current: ≤ 0.1% of range + 0.5% of reading

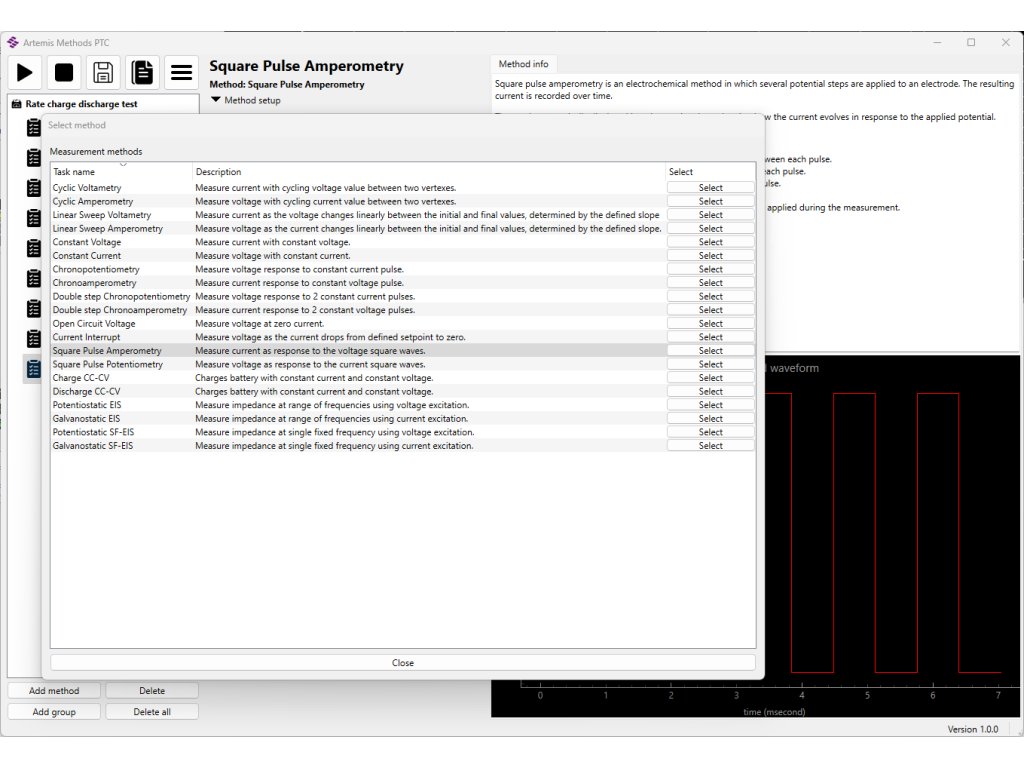

    Acquitions methods Constant V, I, Open circuit, Manual control, Linear Sweeps, Cyclic Voltammetry, Cyclic Amperometry, Electrochemical Impedance Spectroscopy (EIS), Python scripting
    EIS frequency 1 mHz ... 100 kHz, limited use up to 1 MHz
    EIS amplitude (for < 1 kHz) 1 … 1000 mV
    up to 50 A
    PC connection USB 2.0

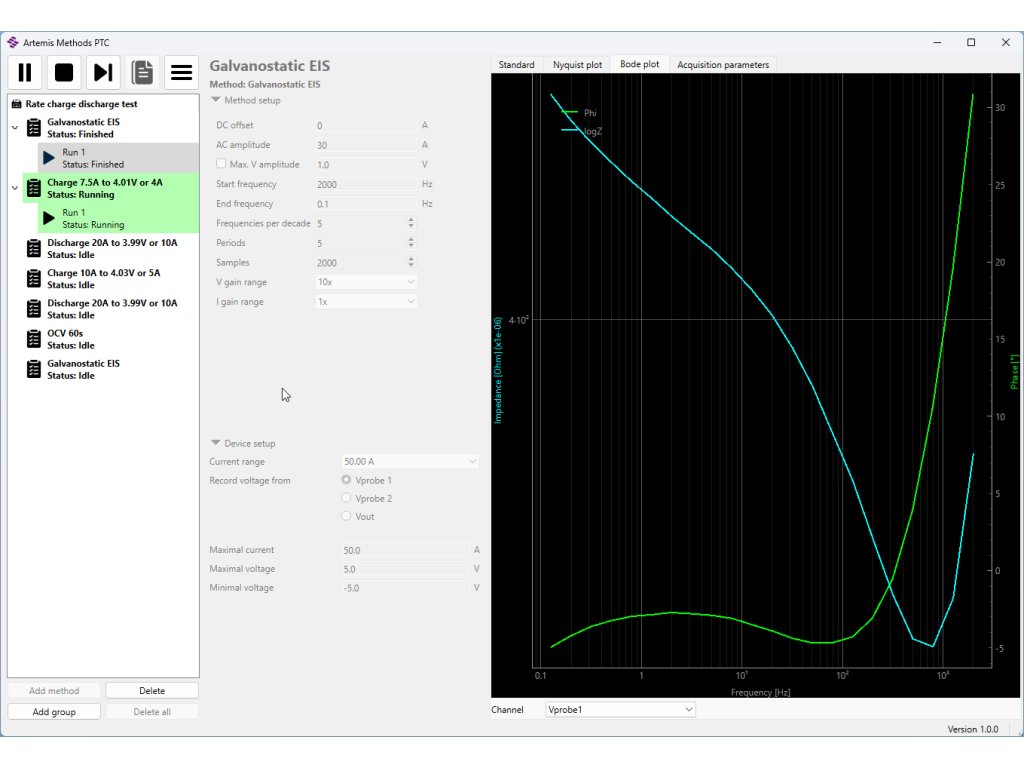

    Software Software for MS Windows, TCP Server, NI LabVIEW drivers, Python tools

    If these variants do not suit you, please contact us, we offer customized solutions!



    Resources

    Product webpage: Potentiostat PTC-05100EW | kolibrik.net
    Documentation: Potentiostat Product Family Datasheet
