Potentiostat Essential PTCe-1020E
Product detailed description
Potentiostats are designed for EIS analysis of single fuel cells, electrolyzers, or batteries. Typical applications include hydrogen fuel cells, water electrolyzers, solid-oxide cells, redox-flow batteries, and lithium batteries with high-current and high-power requirements. Additionally, EIS is utilized in applied research, manufacturing testing, and quality control.
The PTCe-1020E is an air-cooled potentiostat from the Kolibrik Essential Line. It is ideal for a wide range of electrochemical applications, including Electrochemical Impedance Spectroscopy (EIS). Our Potentiostat/Galvanostat delivers high-accuracy and high-precision measurements in both potentiostatic and galvanostatic modes.
Control your experiments efficiently with the included Artemis — Kolibrik measurement software. Its user-friendly interface is designed to streamline automated workflows, ensuring your team maximizes data output without fighting the setup.
World-Class Power, Globally Trusted. Precision to the decimal is our baseline. That’s why the global electrochemical leader, Gamry Instruments, partners with us to offer Kolibrik potentiostats. This synergy of robust high-current hardware and world-class expertise delivers a dependable, high-ROI investment for gigafactories and research labs worldwide.
Experience exceptional accuracy and precision in your electrochemical measurements!
Key Features
- Potentiostat / Galvanostat up to ±20 A (4-quadrant)
- Output voltage up to -5 … +10 V
- Current ranges up to ±20 A (4 ranges)
- Impedance spectroscopy 1 mHz … 100 kHz
- Cyclic Voltametry, Chronoamperometry and other standard electrochemical methods
- Software with external control via TCP/IP, LabView drivers on request
Technical Parameters
| Power supply | 110 … 240 V AC / 50 … 60 Hz |
| Dimensions / Weight | 19“ rack cabinet, 4U height, 440 mm (W) × 177 mm (H) × 358 mm (D) / 15 kg |
| Cooling | Air |
| Protection rating | IP20 |
| Electrometer Input voltage range | 10 V … +10 V |
| Compliance / Output voltage | -5 V … +10 V |
| Compliance / Output current | -20 A … +20 A |
| Max. internal power dissipation | 200 W |
| Current ranges | 20 mA, 200 mA, 2 A, 20 A |
| Sampling | 24-bit ADCs, 1 ksps internal, 50 sps filtered sampling 14-bit ADCs, up to 20 Msps for EIS measurements |
| Measurement resolution | 0.001% of selected range for ≤ 1 ksps sampling |
| Accuracy | Voltage: ≤ 0.1% of range + 0.1% of reading Current: ≤ 0.1% of range + 0.5% of reading |
| Acquitions methods | Constant V, I, Open circuit, Manual control, Linear Sweeps, Cyclic Voltammetry, Cyclic Amperometry, Electrochemical Impedance Spectroscopy (EIS), Chronoamperometry, Chronopotentiometry, Double Step Chronoamperometry, Double Step Chronopotentiometry, Current Interrupt, Square Pulse Potentiometry, Square Pulse Amperometry, Battery Charge and Discharge, Custom experiment sequences, Python scripting |
| EIS frequency | 1 mHz ... 100 kHz, limited use up to 1 MHz |
| EIS amplitude (for < 1 kHz) | 1 … 1000 mV up to 10 A |
| PC connection | USB 2.0 |
| Software | Software for MS Windows, TCP Server, NI LabVIEW drivers, Python library and examples |
If these variants do not suit you, please contact us, we offer customized solutions!
Software

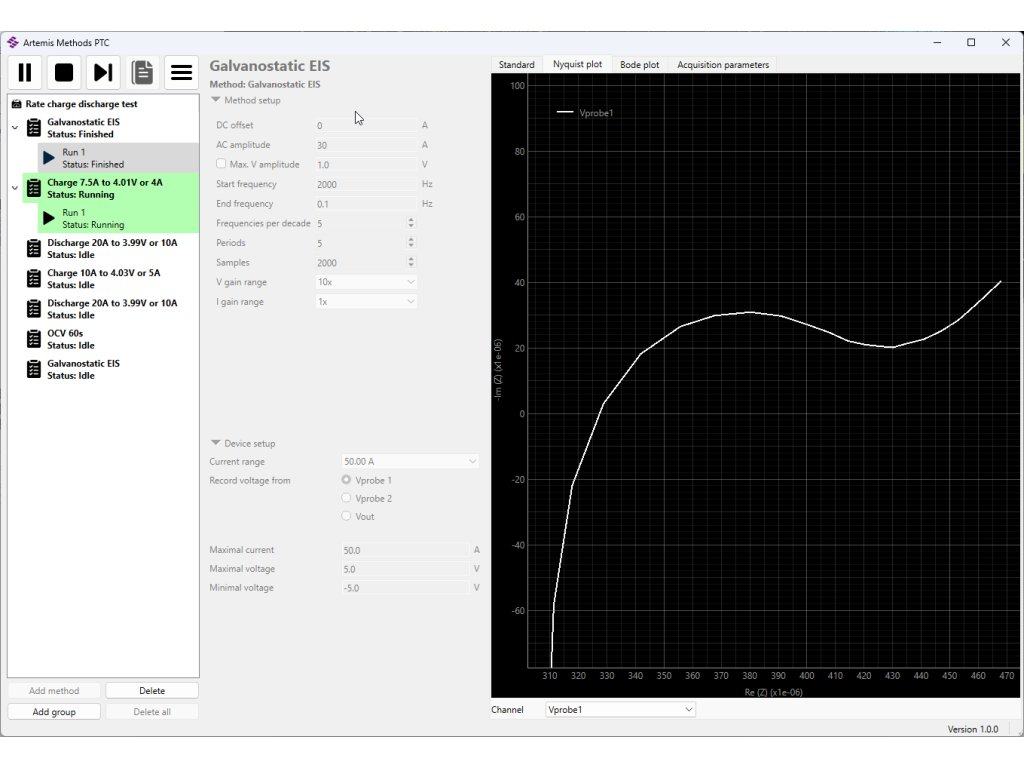

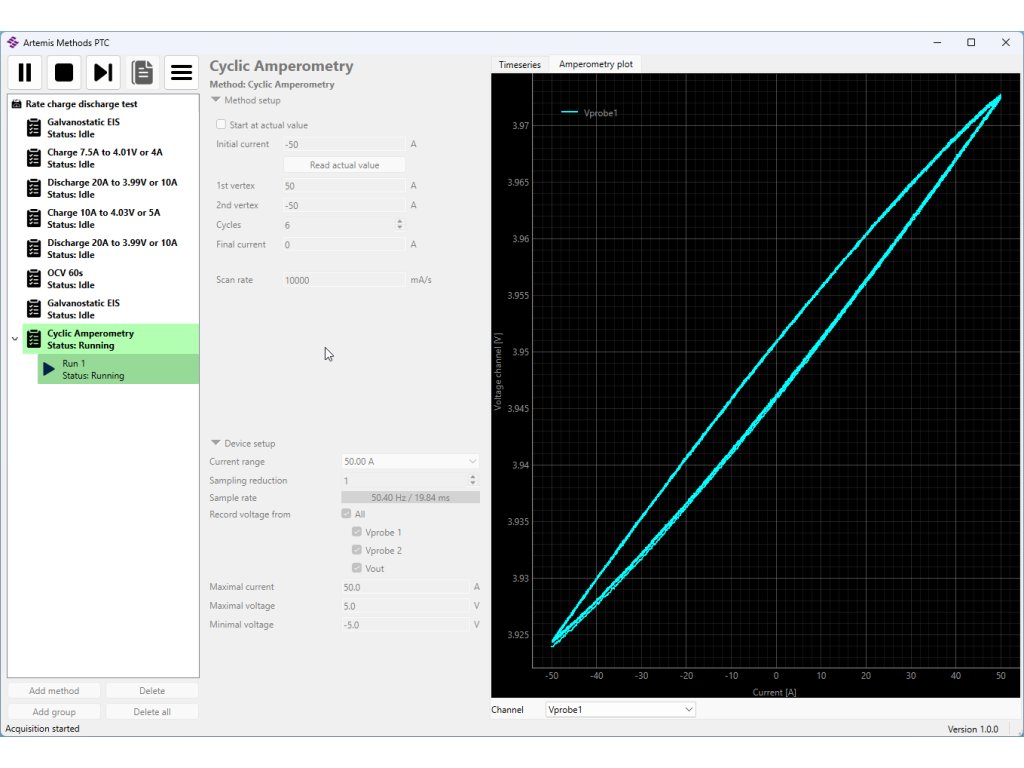

To run your experiments, you’ll use Artemis – Kolibrik Measurement Software – our measurement and control app that manages everything from test sequencing to real-time data acquisition and visualization. Just connect the Potentiostat, choose your method, and let the science begin.
Resources
Product webpage: Potentiostat PTCe-1020E | kolibrik.net
Documentation: Potentiostat Essential Datasheet
Product Introduction Video: Kolibrik Potentiostat PTC-05100EW – Unboxing, Demo & Measurement
