    MegaEIS™ System

    Tip
    mega eis complet
    €0 €0 incl. VAT
    On request

    MegaEIS™ product family is a precise modular testing system for EIS analysis of fuel-cell stacks, electrolyzers and batteries. System consists of power stage which handles the power, and EIS acquisition system which can perform impedance spectroscopy analysis at all cells simultaneously.

    Get a true, uncompromised snapshot of your device's health. The MegaEIS™ System delivers a complete EIS profile by performing true parallel analysis on every cell of your stack or electrolyzer simultaneously. Thanks to a dedicated channel architecture without multiplexing, it captures a perfect, real-time picture of electrochemical performance. This combination of a robust, water-cooled power stage and high-fidelity acquisition makes it the definitive tool for demanding R&D, QA, and diagnostics.

    Detailed information

    Product detailed description

    For fuel-cell stacks, power stage is built from EIS load modules. Your stack can have up to 1 000 cells and provide current up to 2 kA. System is designed for cooperation with external DC load which may handle most of the stack power (up to 300 kW). Maximum internal power dissipation of MegaEIS power stage can be up to 20 kW. System is water-cooled.

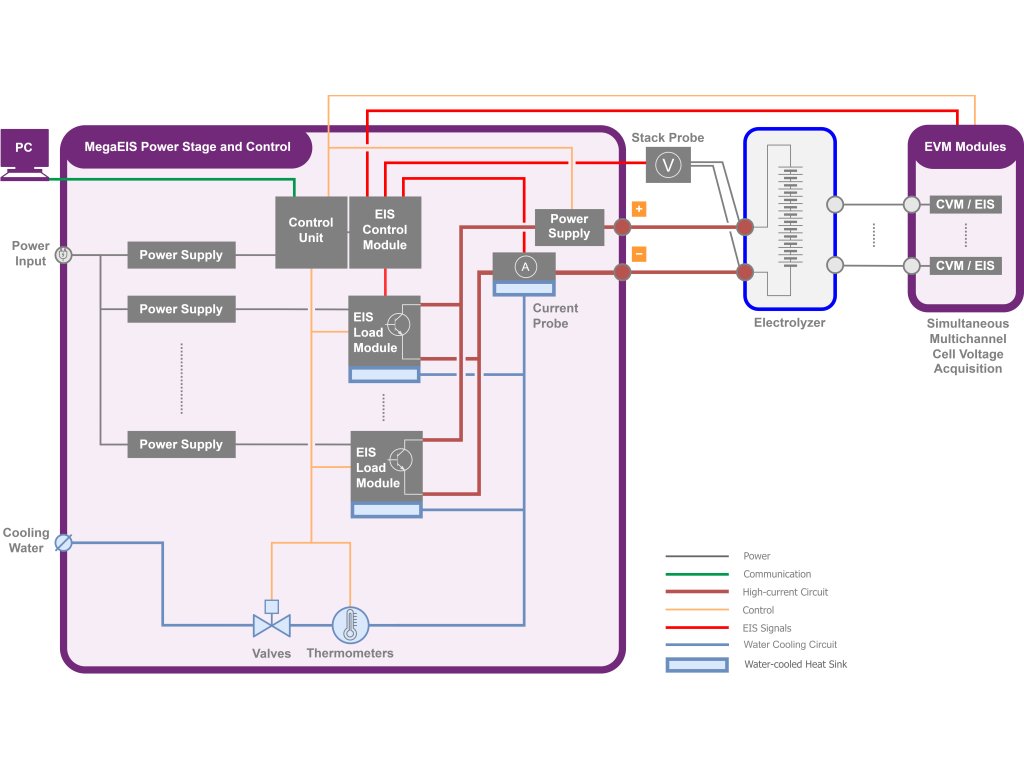

    For electrolyzers, power stage is extended by internal or external power supply, so the system works as regulated power source, capable of EIS measurement.

    EIS acquisition runs simultaneously on all channels, so the system is suitable for rapid and precise analysis in R&D, for QA in manufacturing, or in service diagnostics. MegaEIS also provides DC cell voltage monitoring and enables characterization using important electrochemical methods – Polarization Curves, Chronopotentiometry and Chronoamperometry, Load Cycling, Current Interrupt Technique, etc.



    Solution details

    • Stack voltage up to 1000 V
    • Stack current up to 2000 A
    • Inner dissipated power of MegaEIS up to 20 kW
    • EIS measurement one cell gradually or all cells simultaneously
    • High precision current sensing of both DC and AC components



    Standard configurations

    Product Descritption
    ME-10S270x20 2–10 channels, internal source 270 A / 70 V / 5.4 kW; for electrolyzers
    ME-10S500x20 2–10 channels, internal source 500 A / 20 V / 10 kW; for electrolyzers
    ME-42L200x50 2–42 channels, internal load 200 A / 50 V / 4 kW; for FC stacks
    ME-130L500x200E 2–130 channels, internal load 500 A / 200 V / 4 kW; optional booster 40 kW; for FC stacks
    ME-42L500x50E 2–42 channels, internal load 400 A / 50 V / 8 kW; optional booster 100 kW, 500 A; for FC stacks
    ME-130L2000x200E 2–130 channels, internal load 2000 A / 200 V / 20 kW; optional booster 400 kW; for FC stacks
    ME-514L400x800E 2–514 channels, internal load 400 A / 800 V / 20 kW; optional booster 20 kW, 1000 A; for FC stacks
    ME-42SL200x200E 2–42 channels, internal source/load ±200 A / 200 V / 4 kW; integrated booster; for FC stacks, electrolyzers, batteries, redox flow
    ME-42SL400x80E 2–42 channels, internal source/load -400/+300 A / 200 V / 8 kW; integrated booster; for FC stacks, electrolyzers, batteries, redox flow
    ME-42SL400x200E 2–42 channels, internal source/load ±400 A / 200 V / 8 kW; integrated booster; for batteries
    ME-2SP200 1 channel, source/PTC 200 A / 10 V / 2 kW; for electrolyzers
    ME-2ZL400 1 channel, zero load 400 A / 75 V / 4 kW; for fuel cells

    Contact us for customized MegaEIS™ to meet your specific requirement!
