Designed for hydrogen

CVM-S160A

Code: 87

€1 688 €2 042,48 incl. VAT

On stock

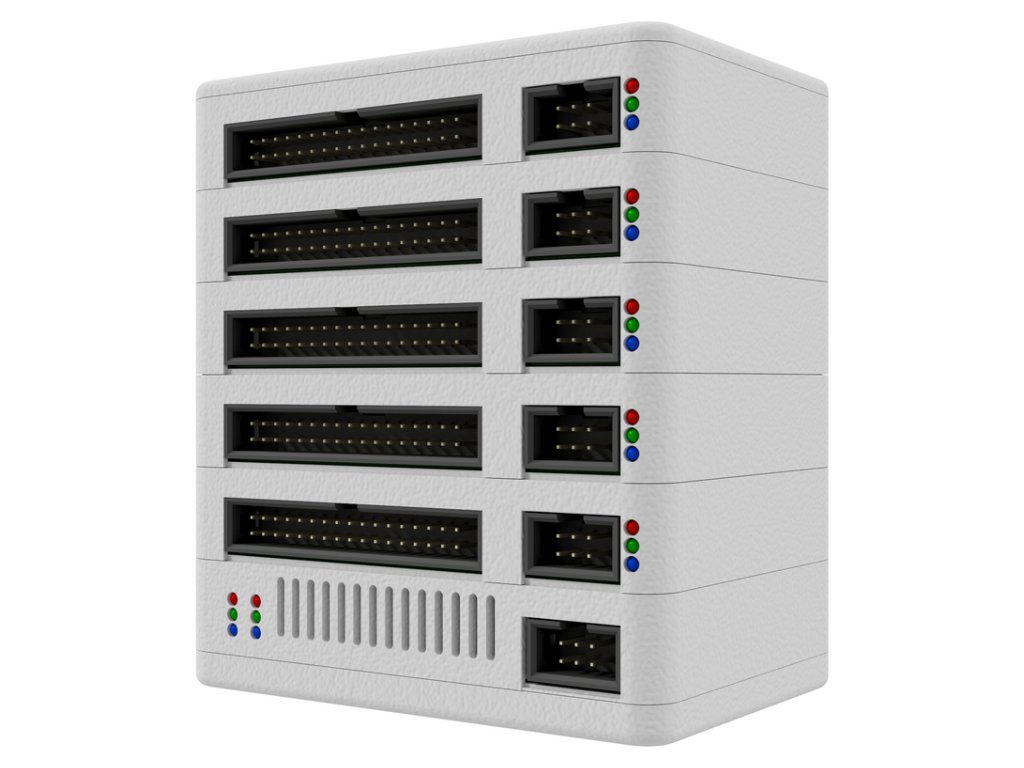

CVM-S160A is a complete assembled set of modules ready to use in your special application.

It contains power source power source KMS-PWR; 5xCVM-32A: 160 channels, 5x outputs, 5x input 24 V.

Detailed information

Description
Discussion

Product detailed description

32 channels per board
Multiple boards can be chained through internal XC2 bus
Very compact design, part of FC Stack Control System
Max. voltage span of all channels is 34 V
Resolution 1 mV (12-bit)
Scan rate up to 1 kHz (depending on cell count and bus speed)
Compatible with other Kolibrik.net products for automation and measurement as Tevomet, DIN I/O modules, etc.
USB interface, RS485 communication
