Picture for the product 1949 - CVM-Set48P
Click to view larger image
Picture for the product 1949 - CVM-Set48P
Picture for the product 1949 - CVM-S48P

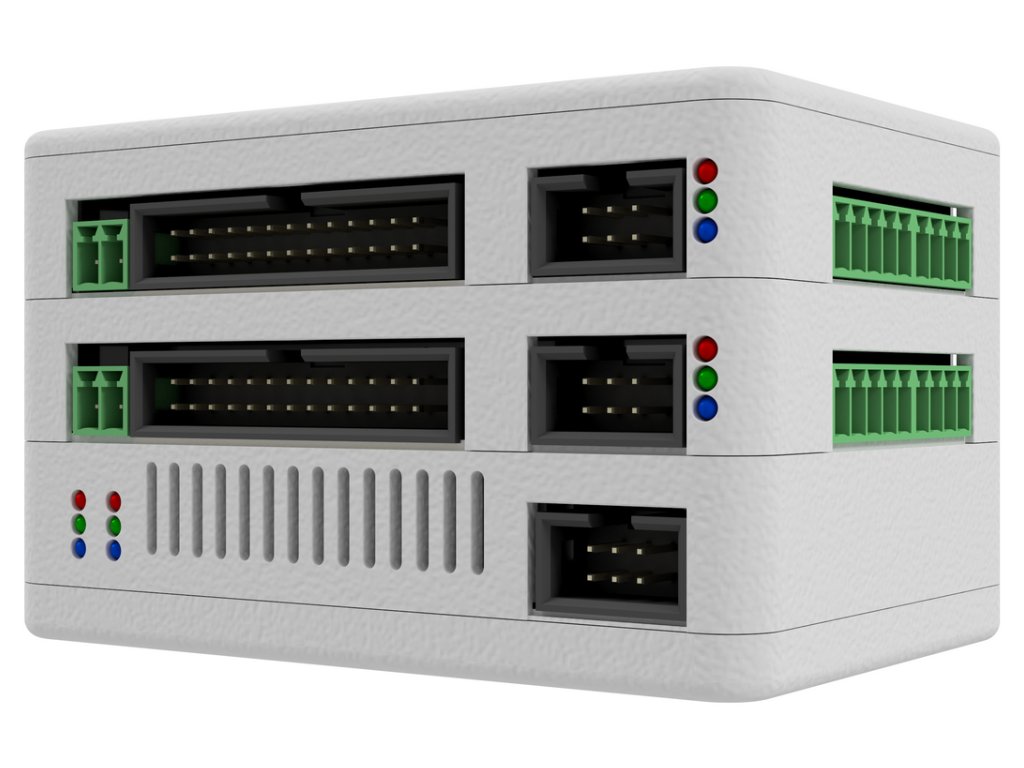

CVM-S48P is a complete assembled set of modules ready to use in your special application.

It contains power source KMS-PWR, 2x CVM-24P: 48 channels total, 2x output, 2x input 24 V and DC power connector.

In stock
1 188,00 €(1 437,48 € incl. VAT)



  • 24 channels per one CVM-24P module
  • Multiple modules can be daisy-chained to measure up to 480 channels, custom sets for more channels available
  • Very compact design, part of FC Stack Control System
  • Compatible with other Kolibrik.net modules
  • Default channel range ±5 V, can be extended
  • Accuracy 0,02% of range + 0,05% of reading
  • Sample rate up to 500 sps
  • Communication: CAN bus, RS-485 (XC2 protocol or MODBUS)
  • Stand alone or component of Compact Modular System and FC Stack Control System
  • Applications: H2 fuel-cell test stands, H2 fuel-cell stack research and control systems, hydrogen technology
