Product detailed description

Adapted for research and testing purposes, the CVM-64H system offers excellent accuracy and is designed primarily for hydrogen fuel cells and smaller electrolyzers. These ready-to-use cell voltage monitor sets are easily integrated into specialized applications and allow direct connection to a PC via USB or to a PLC via RS-485 or CAN bus.

Explore our precision 5 V solutions with the CVM-24P module and sets, or opt for the cost-effective CVM-32A module and sets. For broader temperature and voltage monitoring requirements, consider our TEVOMET solutions.

Technical Parameters

• 64 channels per one CVM-64H module

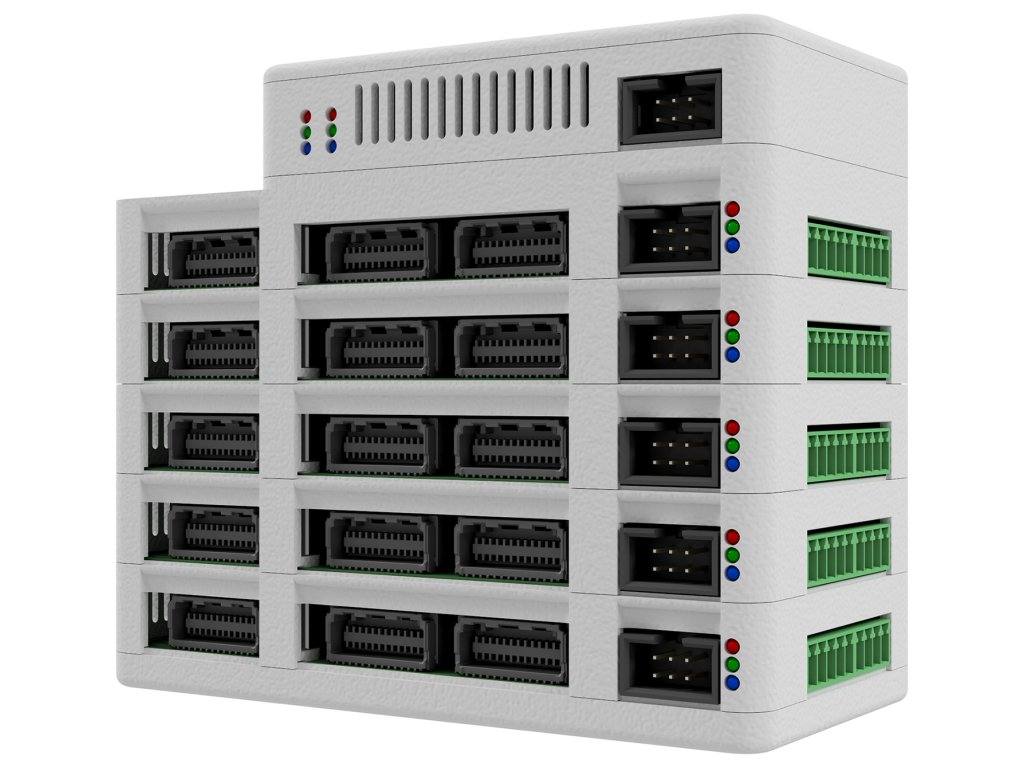

• Multiple modules can be daisy-chained to measure up to 1280 channels, custom sets for more channels available
• Very compact design
• Compatible with other Kolibrik modules
• Default channel range ± 2.5 V, can be extended
• Accuracy 0.02% of range + 0.05% of reading
• Precise 24-bit ADCs, all-channel sample rate up to 250 sps
• Communication: CAN bus, RS-485 (XC2 protocol or MODBUS)
• Applications: H2 fuel-cell stacks and electrolyzer test stands, research and control systems, hydrogen technology, redox-flow batteries, etc.

Resources

Product webpage: CVM-64H Series | kolibrik.net
Documentation: CVM-64H Series Datasheet
