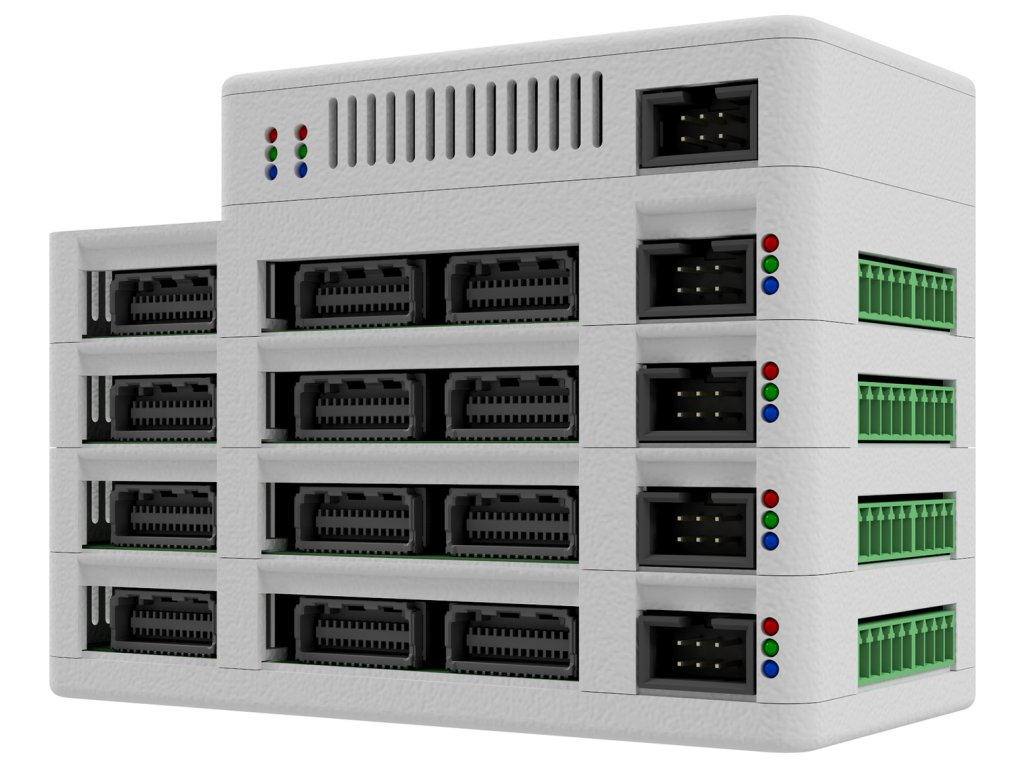

CVM-S256H

 PRODUCT PAGE & DOWNLOADS

• 64 channels per board
• Multiple boards can be daisy-chained
• Very compact design, part of FC Stack Control System
• Compatible with other Kolibrik.net modules
• Default channel range ±2.5 V, can be extended
• 24-bit sampling, RMS noise 10-100 μV
• Accuracy 0.02% of range + 0.05% of reading
• Sample rate up to 250 sps
• Communication buses
  • CAN bus, RS-485/XC2 (compatible with other Kolibrik.net modules)
  • USB (USB/RS485 converter in KMS-PWR module)
• Stand alone or component of Compact Modular System and FC Stack Control System
• Applications: H2 fuel-cell stacks and electrolyzer test stands, research and control systems, hydrogen technology, redox-flow batteries, etc.
