CVM-S192H

CVM-S192H

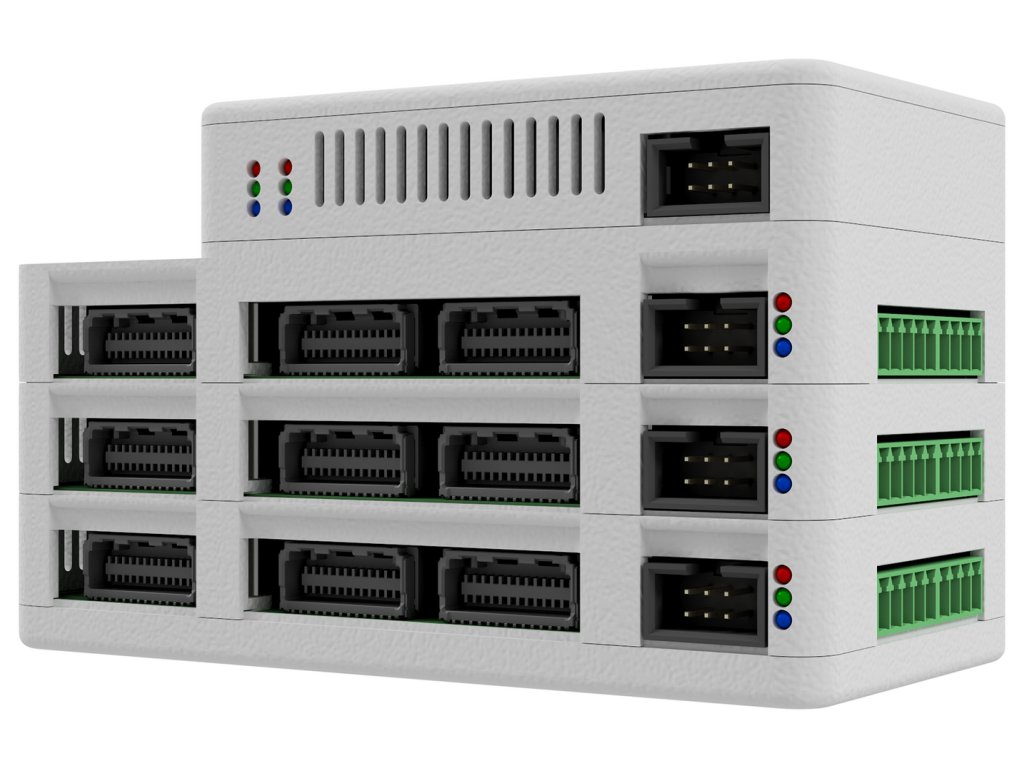

Picture for the product 1966 - CVM-S192H
Click to view larger image

CVM-S192H is a complete assembled set of modules ready to use in your special application.

It contains power source KMS-PWR; 3xCVM-64H: 192 channels, 3x outputs, 3x input 24 V and DC power connector.

In stock
2 888,00 €(3 494,48 € incl. VAT)
2888.00

 PRODUCT PAGE & DOWNLOADS



  • 64 channels per board
  • Multiple boards can be daisy-chained
  • Very compact design, part of FC Stack Control System
  • Compatible with other Kolibrik.net modules
  • Default channel range ±2.5 V, can be extended
  • 24-bit sampling, RMS noise 10-100 μV
  • Accuracy 0.02% of range + 0.05% of reading
  • Sample rate up to 250 sps
  • Communication buses
    • CAN bus, RS-485/XC2 (compatible with other Kolibrik.net modules)
    • USB (USB/RS485 converter in KMS-PWR module)
  • Stand alone or component of Compact Modular System and FC Stack Control System
  • Applications: H2 fuel-cell stacks and electrolyzer test stands, research and control systems, hydrogen technology, redox-flow batteries, etc.
